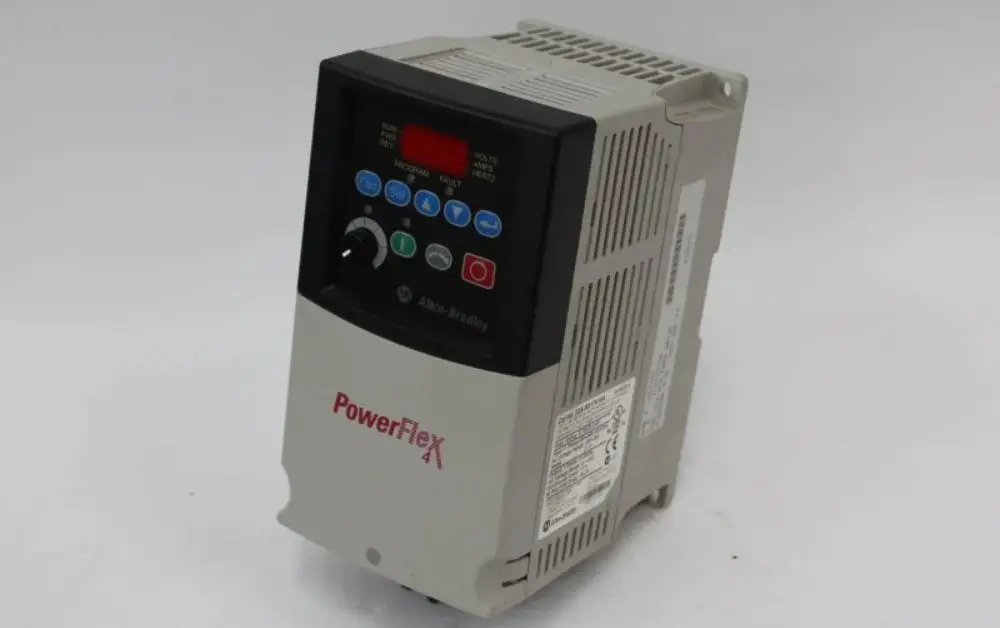

The Allen-Bradley 22B-B017N104 AC Drive is a reliable solution widely used in industrial automation to control motor speed, torque, and overall performance. While the drive is designed for high efficiency and durability, like any sophisticated electrical equipment, it can occasionally encounter operational issues. Identifying and troubleshooting these problems quickly is crucial to minimize downtime and maintain productivity.

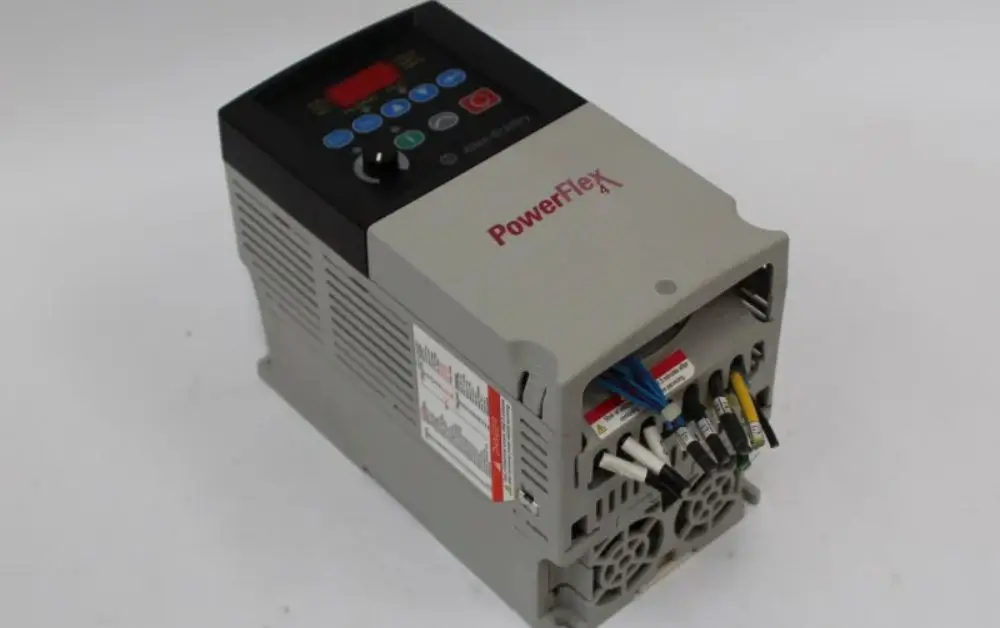

Understanding the 22B-B017N104 AC Drive
Before addressing troubleshooting, it is important to understand the drive’s function. The 22B-B017N104 is part of Allen-Bradley’s family of AC drives, which are used for variable speed motor control. It allows operators to optimize motor performance, save energy, and ensure precise control over industrial processes. Its applications span manufacturing, HVAC systems, conveyor operations, and more.
Common Issues and How to Troubleshoot
1. Drive Not Powering On
A drive that fails to start is often one of the most common concerns. Several factors could be responsible:
● Power Supply Problems: Ensure that the incoming voltage matches the drive’s rated input. Inspect fuses and circuit breakers to confirm they are functional.
● Loose Connections: Check all wiring terminals, including line and motor connections, to ensure secure contact.
● Internal Faults: If external factors are fine, the drive’s internal components or control board might require professional inspection.
2. Overheating Issues
Overheating can lead to frequent shutdowns and damage to the drive. Common causes include:
● Poor Ventilation: Ensure the drive is installed in a well-ventilated area away from heat sources.
● High Ambient Temperature: Verify that the operating environment falls within the manufacturer’s recommended temperature range.
● Overloading: Confirm that the motor is not exceeding its rated load, which can strain the drive and generate excessive heat.
3. Fault Codes and Alarms
The Allen-Bradley 22B-B017N104 features built-in diagnostics that display fault codes on the operator interface. Common faults include overcurrent, undervoltage, and communication errors.
● Overcurrent Faults: Check for mechanical binding in the motor or load, verify motor rating, and inspect cabling for short circuits.
● Undervoltage Faults: Ensure a stable and consistent supply voltage.
● Communication Errors: If the drive is networked to other devices, verify proper communication protocols and wiring integrity.
4. Unstable Motor Speed
If the motor speed fluctuates unexpectedly, it can affect the entire production line. Potential causes include:
● Incorrect Parameter Settings: Review drive parameters such as acceleration/deceleration times, torque limits, and speed reference signals.
● Input Signal Issues: Ensure that the control signals from PLCs or other controllers are stable and correctly configured.
● Motor Faults: Sometimes the problem lies in the motor itself rather than the drive. Inspect for winding issues or mechanical wear.
5. Noise or Vibration
Excessive noise or vibration can indicate both electrical and mechanical problems.
● Electrical Sources: Check for harmonic distortions or electrical interference from nearby equipment.
● Mechanical Sources: Ensure the motor shaft, bearings, and couplings are properly aligned and lubricated.
Suggested Read-What Should You Know About Allen Bradley Suppliers?
Best Practices for Maintaining the Drive
Preventive maintenance is key to reducing troubleshooting frequency:
● Conduct regular inspections of wiring, connectors, and cooling fans.
● Keep firmware and software up to date to benefit from manufacturer enhancements.
● Train operators to recognize early warning signs such as unusual noise, vibration, or temperature rise.
● Document all parameter settings and changes for easier diagnosis in the future.
Conclusion
The Allen Bradley 22B-B017N104 AC Drive is a robust and versatile solution, but like all industrial equipment, it may face operational challenges. Proper troubleshooting involves understanding the drive’s functions, inspecting power and wiring, monitoring environmental conditions, and addressing fault codes promptly. By implementing preventive maintenance and ensuring accurate setup, businesses can significantly reduce downtime and enhance system reliability. For companies seeking expert guidance and high-quality solutions, Apеx Global Solution LLC shines as a trusted partner, providing technical support, genuine AC drive components, and unmatched customer service to keep operations running smoothly.
